Innovations in Electrophysiology




The CMOS-MEA5000-System is the in vitro recording system from Multi Channel Systems for extracellular recordings and stimulation at the highest resolution.

Based on the complementary metal-oxide semiconductor technology, it opens up new possibilities in electrophysiological research.

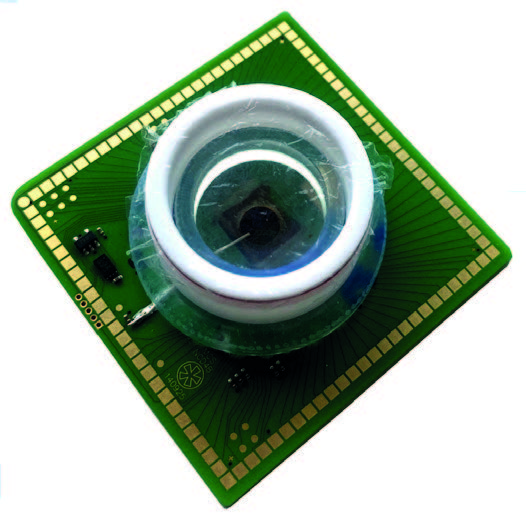

With more than 4000 recording sites, each of them sampled at 25 kHz, the chip allows extracellular recordings at a very high spatio-temporal resolution. By including amplification on the chip itself, noise is minimized and a high signal quality is guaranteed.

As stimulation sites are included in the chip and a stimulus generator in the headstage, the system is ideal for closed-loop experiments.

For more detailed information, please click on the description tab above.


High resolution: The video shows the propagation of an average action potential along a single unmyelinated axon of a rat ganglion cell. Details can be found in the paper of H.Stutzki et al. in Frontiers Cell. Neurosci. 8:38 (2014).
Data courtesy to F.Jetter, H.Stutzki and G.Zeck, NMI Reutlingen

MCS-InterfaceBoard-3.0-Multiboot MCS-IFB

As part of the system, the MCS-IFB 3.0 Multiboot is a new interface board generation which is able to receive data from a MEA2100(-Mini)-Headstage, a Multiwell-MEA-Headstage, a CMOS-MEA5000-Headstage, a MCS-SCU or a W2100-Receiver. This makes cost-effective combinations with only one interface board and multiple recording systems possible. You can establish for example your experiments on 60, 120, or 256 electrodes with the MEA2100-System, then add the Multiwell-MEA-Headstage and start high-throughput screening. It's also possible to use the same interface board for in vitro MEA experiments and tethered / wireless in vivo recordings. This leaves you with even more flexibility in switching between possible configurations for your specific research needs.

Key features:

  • Real-time signal detection and feedback*
  • Freely programmable DSP*
  • Multiple inputs/outputs, including digital, analog, and audio
  • SuperSpeed USB 3.0 ports

* applicable for MEA2100(-Mini), ME2100, and W2100

Read more technical specifications


MEA Technology

New to microelectrode array (MEA) in vitro technology?

Get an overview of the technical basics and suitable applications on our site about MEA solutions.

Visit website
